NovaAI Compute
Equipped with dual 3rd Gen Intel® Xeon® Scalable processors.
Supports flexible drive configurations including NVMe SSDs and SAS/SATA.
Optimized for low power consumption without sacrificing power.
| Feature | Specification |
|---|---|

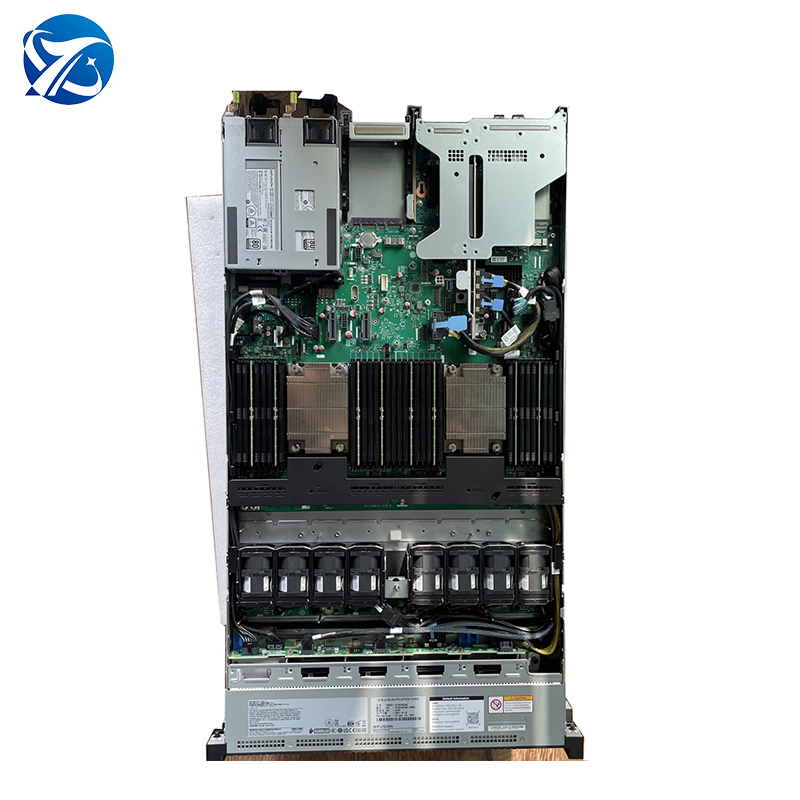

| Server Model | FusionServer 1288H V7 |
| Form Factor | 1U Rack Server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Drive Bays | Supports hot-swappable configurations: • 10 x 2.5" (NVMe/SAS/SATA) • 4 x 3.5" (SAS/SATA/SSD) • Dual M.2 SSDs |
| RAM | 32 DDR4 DIMMs, up to 3,200 MT/s; 16 Optane™ PMem 200 series |
| Storage Controllers | RAID 0, 1, 10, 5, 50, 6, 60; Optional supercapacitor; Remote web-based configuration |
| I/O & Ports | LOM: 2 x 10GE + 2 x GE ports |
| Dimensions | 43.5 mm x 447 mm x 790 mm |
| Power Supply | Platinum/Titanium PSUs: 900W, 1200W, 1500W, 2000W; Support for AC/DC/HVDC inputs |
