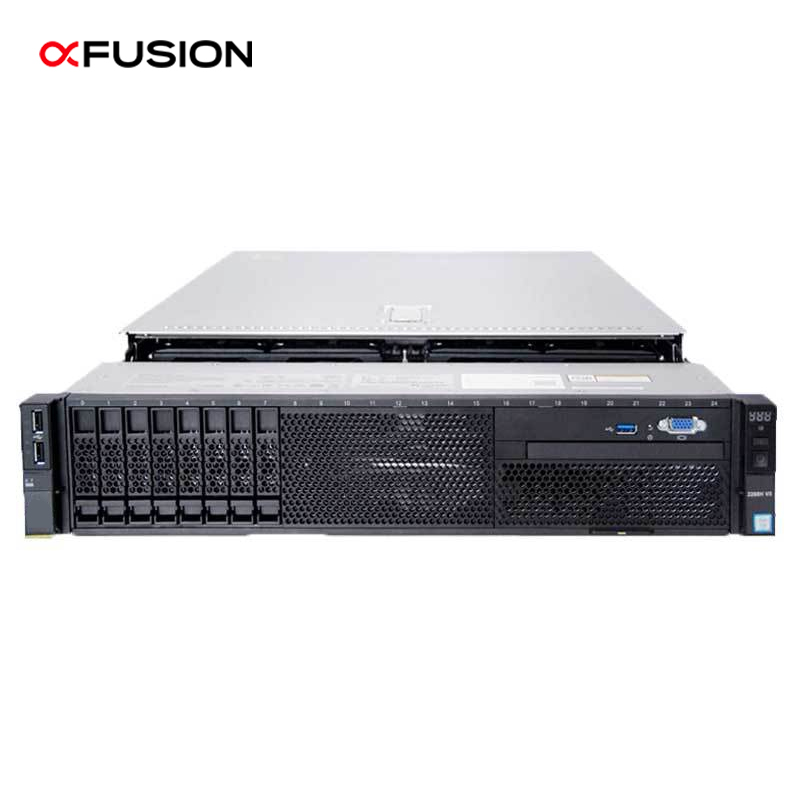

FusionServer 2288H V6 2U Rack Server
The FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads. It integrates patented technologies such as DEMT, intelligent power consumption management, FDM intelligent fault management, and optional FusionDirector full lifecycle management software, which can effectively reduce operations cost and improve return on investment.
Configured with 2-socket Intel® Xeon® Scalable processors and 32 DDR4 RAM.
Supports large local storage resources and various drive configurations.
Features 14 PCIe expansion slots for versatile connectivity options.
| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage | 8-31 x 2.5-inch SAS/SATA/SSD; 12-20 x 3.5-inch SAS/SATA; 4/8/16/24 NVMe SSDs; Dual M.2 SSDs |
| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache protection |
| Network | OCP 3.0 NICs, two FlexIO card slots, hot swappable supported |
| PCIe Expansion | Maximum 14 PCIe 4.0 slots (including dedicated RAID and OCP 3.0 slots) |
| Management | iBMC chip, Redfish, SNMP, IPMI 2.0, HTML5/VNC KVM, FusionDirector (Optional) |
| Operating Systems | Windows Server, SUSE Linux, VMware ESXi, Red Hat, CentOS, Oracle, Ubuntu, Debian |
| Security | TPM 2.0, security panel, secure boot, cover opening detection |
| Fan Modules | Four hot-swappable counter-rotating fan modules in N+1 redundancy |
| Power Supply | 1+1 redundancy; 900W/1200W/1500W/2000W/3000W options (Platinum/Titanium) |
| Dimensions | 86.1 mm x 447 mm x 790 mm (Height x Width x Depth) |
