NovaAI Compute
NovaAI Compute

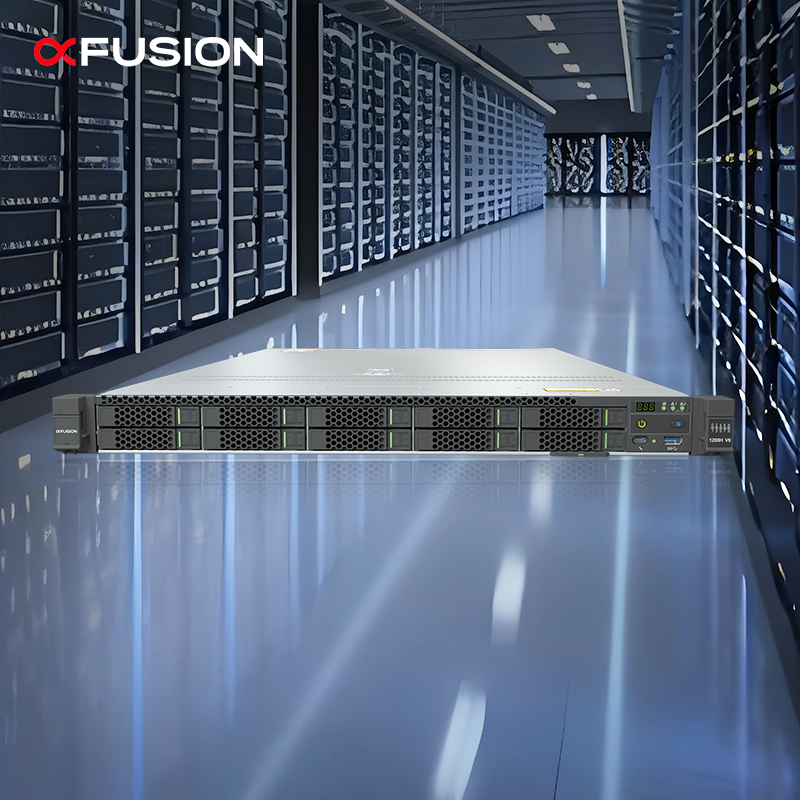

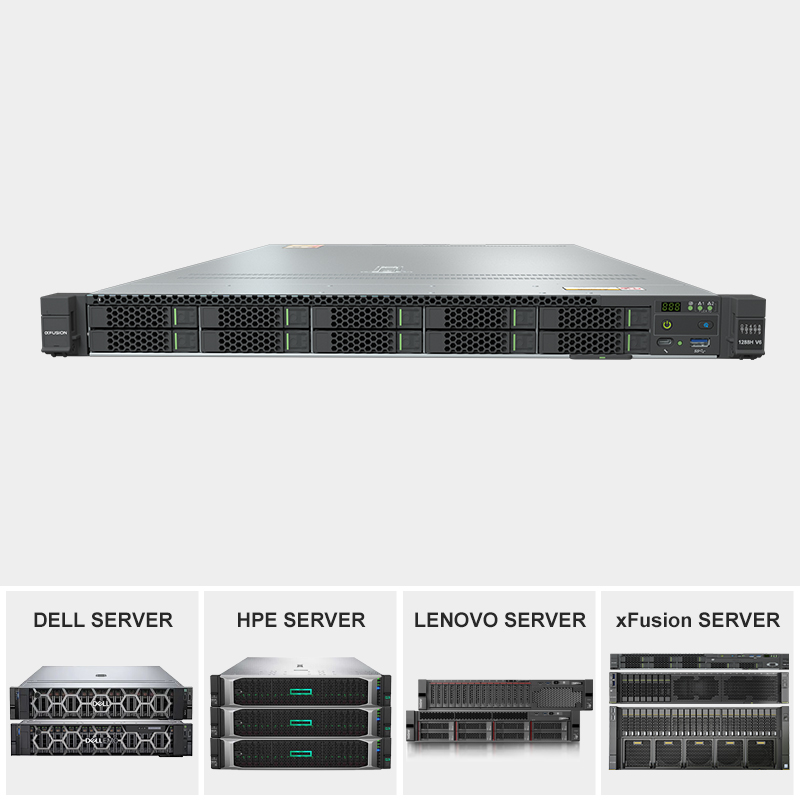

The FusionServer 1288H V6 is a 1U 2-socket rack server that is suitable for high-density workloads such as cloud computing, virtualization, high-performance computing (HPC), and big data processing Deployment to improve data center space utilization. The 1288H V6 can be configured with 2 Intel® Xeon® Scalable processors, 32 Wisers DDR4 RAM, and 4*3.5" in 1U space or 10 x 2.5" local storage resources (configurable with 4/10 NVMe SSD drives). Integrate DEMT intelligent power management, FDM intelligent fault management and other patented technologies, optional with FusionDirector lifecycle management software, it can effectively reduce operating costs and improve return on investment.
| Server Model | FusionServer 1288H V6 |
| Form Factor | 1U Rack Server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), thermal design power (TDP) up to 270 W |
| Drive Bays |
Supports various drive configurations and hot swappable: • 10 x 2.5-inch drives (6–10 NVMe SSDs and 0–4 SAS/SATA drives) • 10 x 2.5-inch drives (2–4 NVMe SSDs and 6–8 SAS/SATA drives) • 10 x 2.5-inch SAS/SATA/SSD drives • 8 x 2.5-inch SAS/SATA/SSD drives • 4 x 3.5-inch SAS/SATA/SSD drives • Supports flash storage: Dual M.2 SSDs |
| RAM | 32 DDR4 DIMMs, up to 3,200 MT/s; 16 Optane™ PMem 200 series, up to 3,200 MT/s |

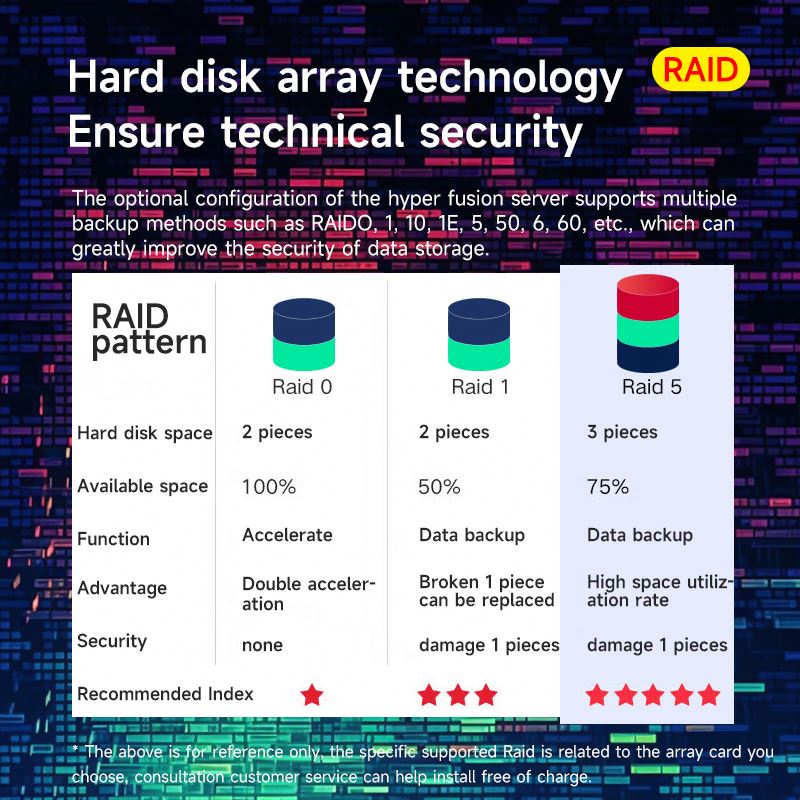

| Storage Controllers | Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| I/O & Ports | LOM: 2 x 10GE + 2 x GE ports |
| Dimensions (H x W x D) | 43.5 mm x 447 mm x 790 mm (Compatible with both 3.5-inch and 2.5-inch drive chassis) |
| Power Supply Units |
• 900 W AC Platinum/Titanium PSUs • 1500 W AC Platinum PSUs • 1500 W 380 V HVDC PSUs • 1200 W -48 V to -60 V DC PSUs • 2000 W AC Platinum PSUs |
As a leading integrated IT solutions provider, we combine cutting-edge manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end-to-end infrastructure services. Our team includes more than 150 certified engineers holding top-tier certifications, bringing 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide. We provide high-quality Computing servers, Network storage, Network switches, CPU, RAM, Hard Drives, and other critical accessories.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
