New xFusion Fusionserver 2288H V6 2U Cloud Server 12x3.5-inch Drive Xeon 2* 4310 2288H V6 2U 2-socket Computer Rack Server

Product Description

FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads. The 2288H V6 can be configured with 2-socket Intel® Xeon® Scalable processors, 32 DDR4 RAM, 14 PCIe expansion slots, and supports large local storage resources. It integrates patented technologies such as DEMT, intelligent power consumption management, FDM intelligent fault management, and optional FusionDirector full lifecycle management software, which can effectively reduce operations cost, improve return on investment.
Product Display
Product Display

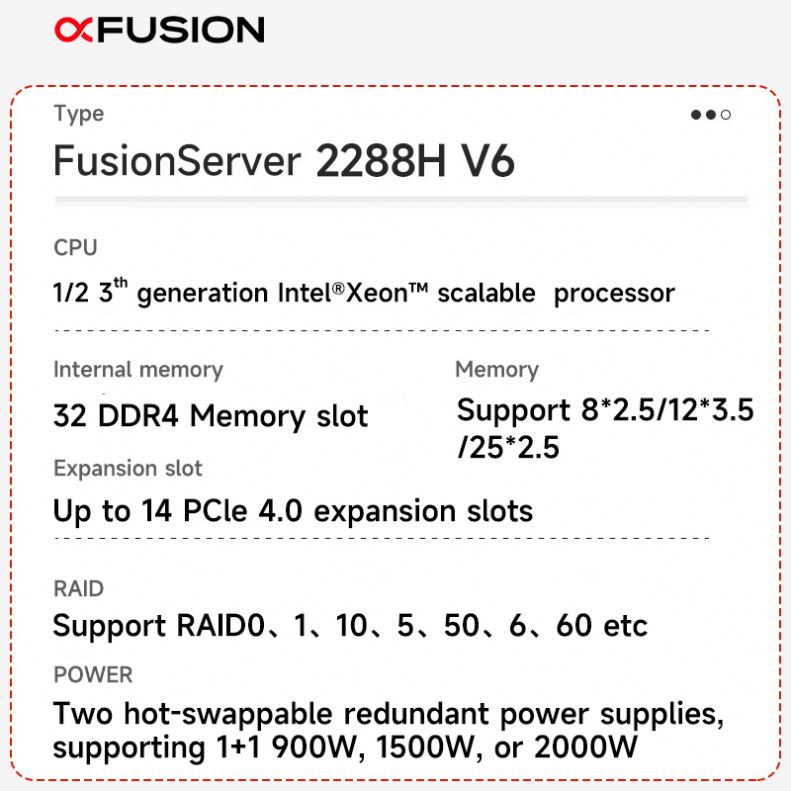

Product Parameters
Server Model FusionServer 2288H V6
Form Factor 2U rack server
Processors One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W
Local Storage Supports various drive configurations and hot swappable:
• 8-31 x 2.5-inch SAS/SATA/SSD drives
• 12-20 x 3.5-inch SAS/SATA drives
• 4/8/16/24 NVMe SSDs
• 45 x 2.5-inch drives or 34 full-NVMe SSDs
Supports flash storage: Dual M.2 SSDs

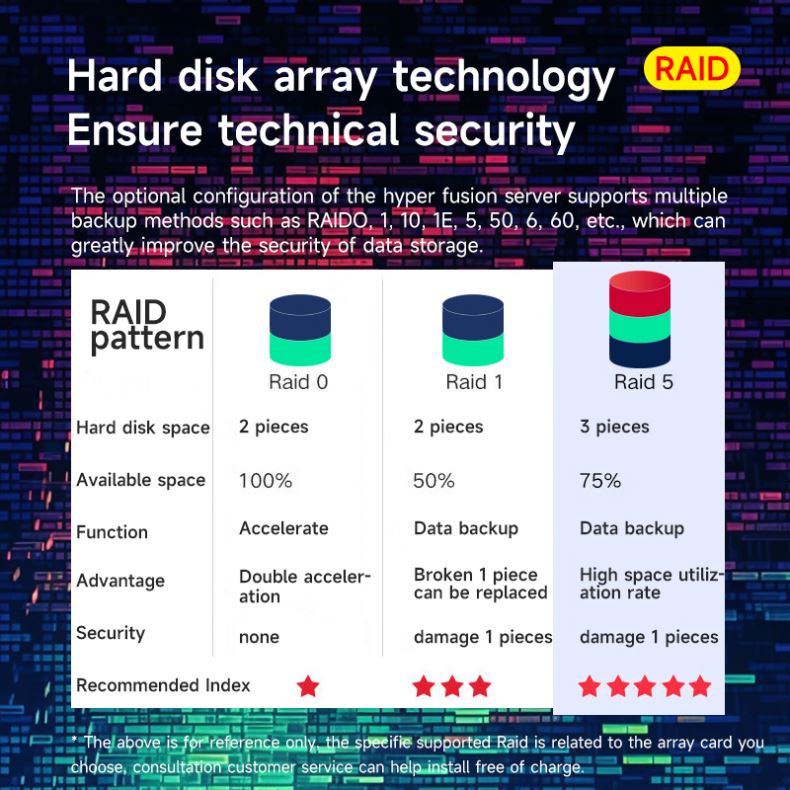

RAID support Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration.
Network Provides expansion capability of multiple types of networks. Provides OCP 3.0 NICs. The two FlexIO card slots support two OCP 3.0 network adapter respectively.
PCIe Expansion Provides a maximum of fourteen PCIe 4.0 slots, including one PCIe slot dedicated for RAID card, two FlexIO card slots dedicated for OCP 3.0, and eleven PCIe 4.0 slots for standard PCIe cards.
Chip Set Intel C621A
Management iBMC chip integrates one dedicated GE management port. Supports standard interfaces such as Redfish, SNMP, and IPMI 2.0. Optional FusionDirector management software for intelligent lifecycle management.
Operating Systems Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, etc.
Security Features Power-on password, administrator password, TPM 2.0, security panel, secure boot, and cover opening detection.
Operating Temp 5°C to 45°C (41°F to 113°F) (ASHRAE Classes A1 to A4 compliant)
Dimensions 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10in.)
Power Supply Two hot-swappable PSUs in 1+1 redundancy mode. Options: 900W/1500W/2000W/3000W AC Platinum/Titanium, or HVDC/DC options.
Detailed Views

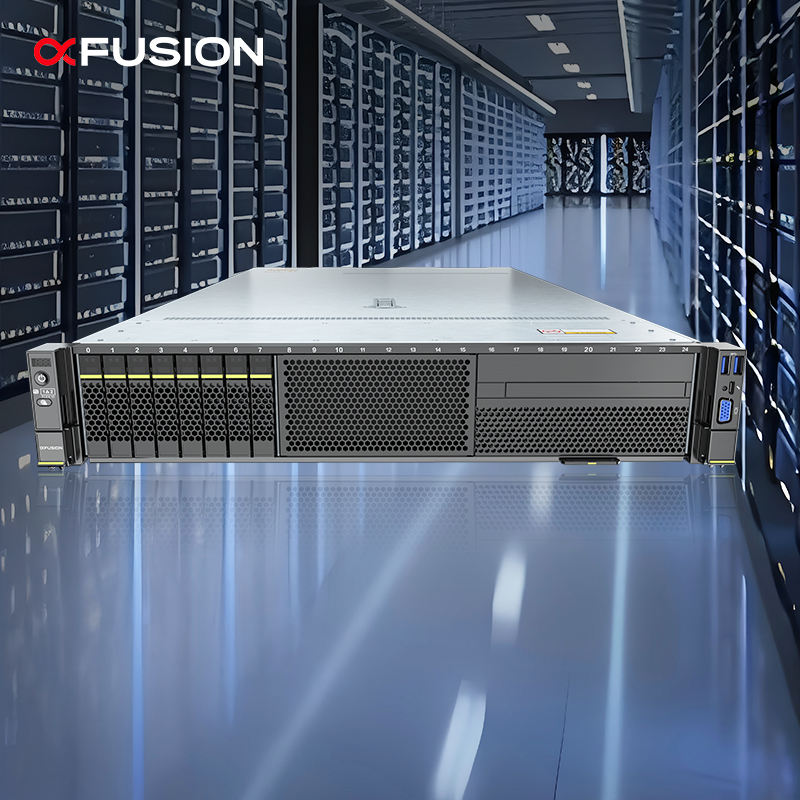

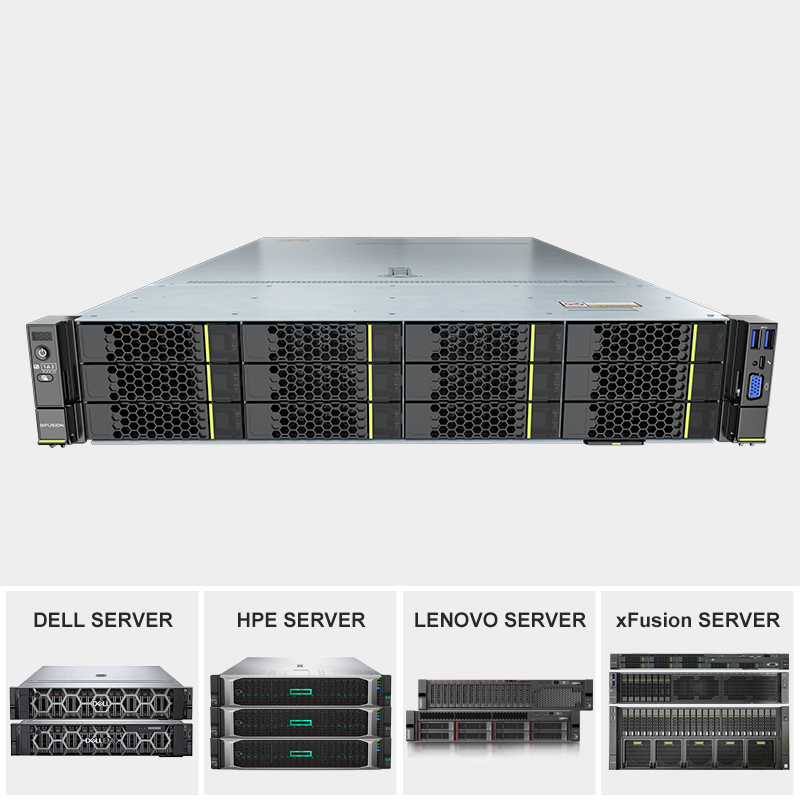

Server View 1

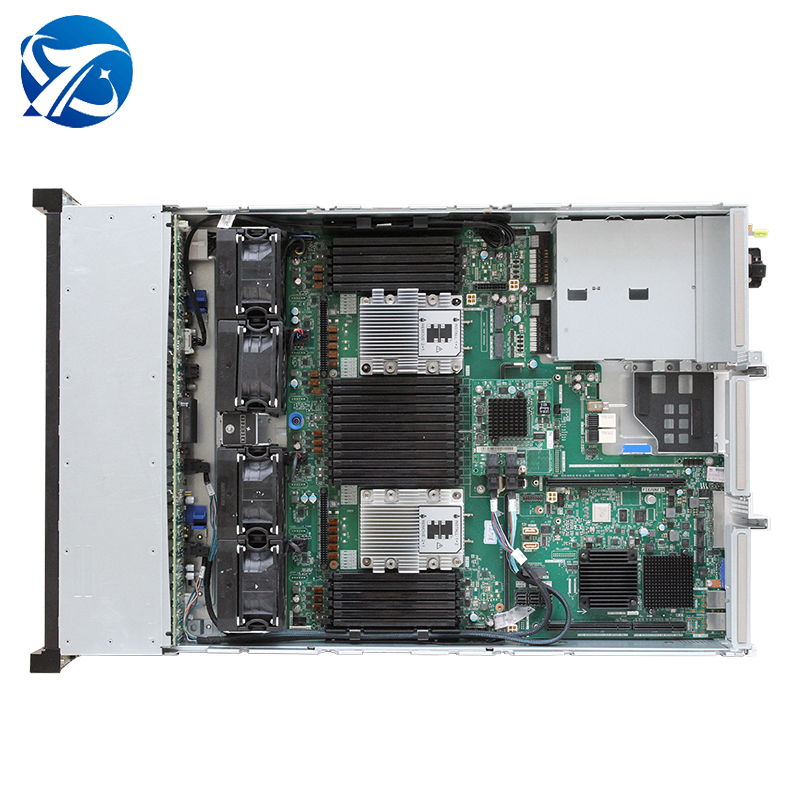

Server View 2
Company Profile
Professional Facilities
As a leading integrated IT solutions provider, we combine cutting edge in-house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end-to-end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments. As authorized partners for major brands, we provide:
  • Computing servers
  • Network storage
  • Network switches
  • CPU, RAM, HARD DRIVES, and other accessories
Exhibition & Logistics
Exhibition
Packing
Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
